Can pipe elbows and flanges be connected directly?

Can pipe elbows and flanges be connected directly?

Whether pipe elbows and pipe flanges can be directly connected depends on the specific connection method and application scenario. In pipeline connections, flanges and elbows are commonly used connection methods and pipe fittings. A direct connection method is to weld one end of the elbow directly to the flange. The advantages of this connection method include firm connection, good sealing, and simple installation. However, according to the general rules for petrochemical pipeline layout design SH 3012-2000, flat welding flanges should not be directly connected to elbows without straight pipe sections. In addition, the design specifications suggest that for the convenience of maintenance and to prevent corrosion, a straight pipe should be considered to connect the elbow and the flange.

Flange connection pipe and elbow principle:

Flange connection refers to the way to connect pipelines together through flanges. It is one of the most commonly used connection methods in pipeline connections. It has the advantages of easy installation, quick disassembly, and good sealing. The elbow is the turning part of the pipeline, which is used to change the flow direction of the pipeline or make the pipeline bypass obstacles. It is usually divided into elbows with different angles such as 45 degrees, 90 degrees and 180 degrees.

Feasibility of directly connecting flange to elbow:

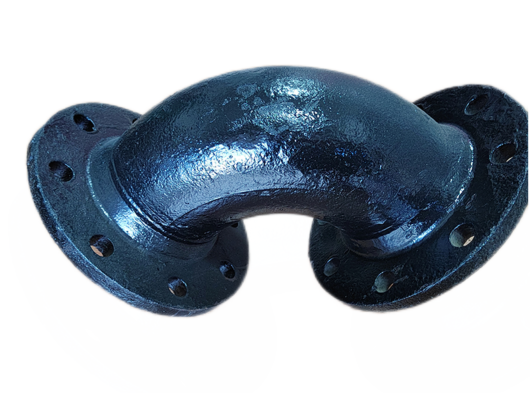

Pipe flange direct connection elbow refers to connecting the flange of the elbow directly to the flange of the pipe. In practical applications, although it is feasible to directly connect the flange to the elbow, the following points need to be noted:
1. Choose a suitable bend. If the pipe actually requires a 45-degree or 90-degree bend, but only has a 180-degree elbow, then the direct connection may affect the flow and velocity of the pipe, and may even cause the pipe to become clogged.
2. Consider the expansion coefficient. Pipes will expand or contract due to temperature changes during use. If the flange is directly connected to the elbow, it may cause displacement or deformation of the pipe, affecting the normal operation of the pipe.
3. Pay attention to the matching degree of the elbow flange and the pipe flange. If the size or standard of the flange is inconsistent, the firmness and sealing of the connection will be affected.

Precautions:
1. When selecting a flange to directly connect an elbow, the specific actual situation must be considered. If it may affect the pipeline flow and velocity or the installation is not stable enough, it is recommended to use a joint connection method.
2. During installation, follow the operating procedures, keep the connection end surface clean and free of impurities, and use appropriate tightening force to ensure the firmness and sealing of the connection.
3. During use, check the connection between the elbow and the flange regularly. If there is looseness or leakage, deal with it in time.
4. When using flanges to directly connect elbows, the number of elbows should be reduced as much as possible to reduce the resistance loss of the piping system.

In short, it is feasible for pipe elbows to directly connect flanges, but they need to be selected and used according to the actual situation to ensure the normal work and safe operation of the pipeline system.
